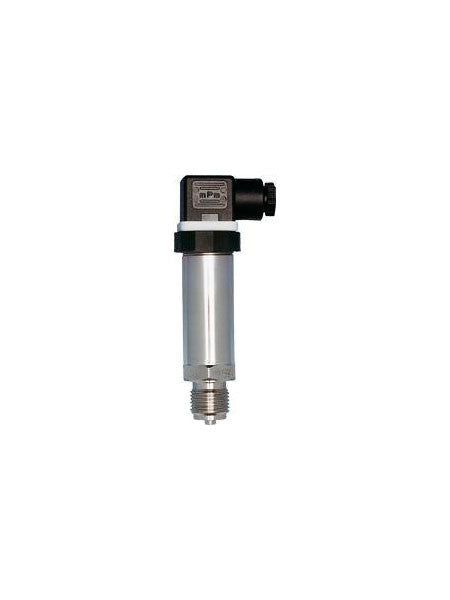

JUMO dTRANS p30 -> translate
Pressure transmitter. Designed for measuring the relative and absolute pressure of liquids and gases. Piezoresistive measuring principle.
Type 40.4366
Order code: 404366/000-456-405-504-20-36/000
Measuring ranges: Input: 0…0,25 / 0,4 / 0,6 / 1 / 1,6 / 2,5 / 4 / 6 / 10 / 16 / 25 / 40 / 60 / 100 / 250 / 400 / 600; -1…0 / 1 / 0,6 / 3 / 5 / 9 / 15 / 24 bar (relative pressure)
0…0,6 / 1 / 1,6 / 2,5 / 4 / 6 / 10 / 16 / 25 bar (absolute pressure)
Output: 4…20 мА, 0…10 V, 0.5…4.5V, 1…5V, 1…6V
Accuracy: ± 0,5% (optional ± 0,2%)
Medium temperature: -30...+120°С
Environmental temperature: -20...+100°С
Process connection: threaded nipple G 1/8 , G 1/4 , G ½” , М20х1.5, 1/4" 18NPT , 7/16" - 20UNF, G ½” ,G 1” , G 3/4” , G 1 ½” (not front-flush or front-flush), Clamp DN20-50, with union nut DN20-50 (milk cone), tank DN25, JUMO PEKA,, diaphragm DIN/ANSI
Electrical connect.: rosette head, IP 65, pin cable (standard 2 m), IP 67, a cylindrical plug М12х1, IP 67
Detailed description, specifications, and other options orders dTRANS p30 please visit www.jumo.de, www.jumo.ru, www.jumo.lv. Data Sheet 40.4366
